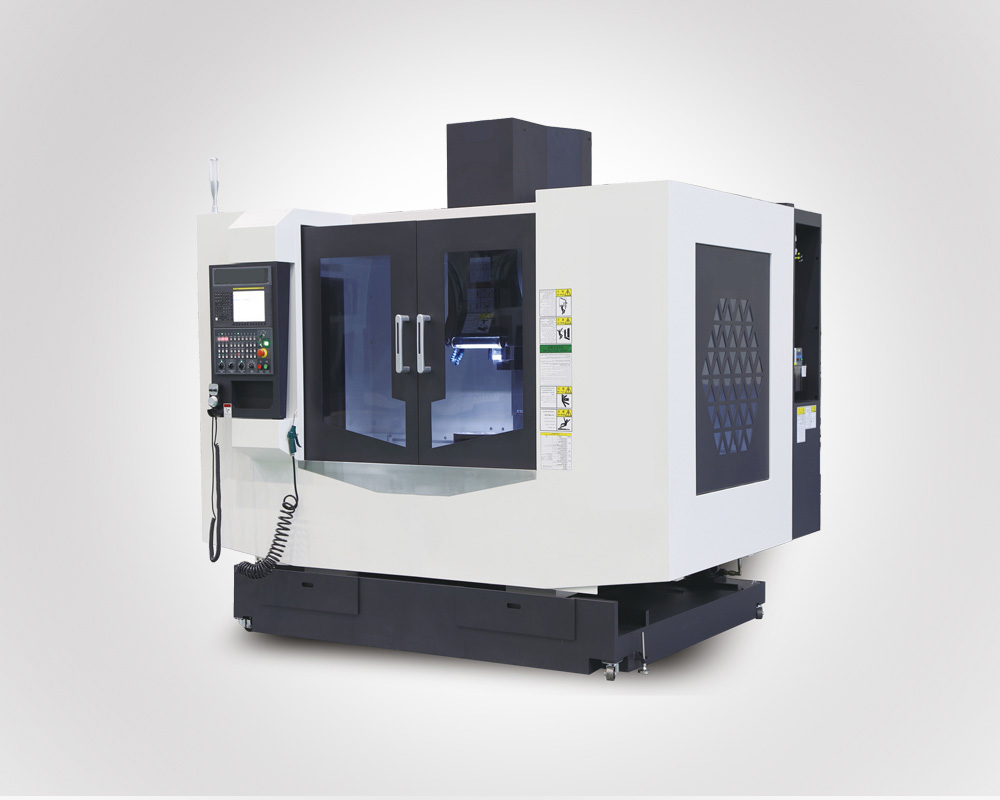

VL-Series Vertical Machining Center

Parameters	Unit	V850L	V850L	V1160L	V1160L	V1160L	V1370L	V1370L	V1370L	V1580L	V1690L
Spindle type		Belt	Direct	Belt	Direct	Belt	Belt	Direct	Belt	Belt	Belt
Tool holder type		BT40	BT40	BT40	BT40	BT50	BT40	BT40	BT50	BT50	BT50
Spindle speed	r/min	8000	10000	8000	10000	4500	8000	10000	4500	5000	5000
Main motor power in 30 minutes	kW	11/15	11/15	11/15	11/15	15/18.5	11/15	11/15	15/18.5	11/15	11/15
Spindle Torque in 30 minutes	Nm	52.5/95.5	52.5/95.5	52.5/95.5	52.5/95.5	126/208	52.5/95.5	52.5/95.5	126/208	168/305	168/305
X-axis	mm	850	850	1100	1100	1100	1300	1300	1300	1500	1600
Y-axis	mm	510	510	610	610	600	710	710	700	810	910
Z-axis	mm	510	510	610	610	600	710	710	700	810	810
From spindle nose to worktable face	mm	150-660	150-660	150-760	150-760	120-720	150-860	150-860	150-850	150-960	150-960
Worktable Size	mm	950×500	950×500	1200×600	1200×600	1200×600	1400×700	1400×700	1400×700	1700×800	1800×900
Worktable Load	kg	500	500	1000	1000	1000	1300	1300	1300	1500	1600
Rapid Traverse	m/min	36/36/24	36/36/24	36/36//24	36/36//2	36/36//24	30/30/24	30/30/24	30/30/24	20/20/20	20/20/20
Cutting Speed	mm/min	12000	12000	12000	12000	12000	10000	10000	10000	10000	10000
Positioning Accuracy	mm	0.008	0.008	0.008	0.008	0.008	0.01	0.01	0.01	0.012	0.012
Repeatability Accuracy	mm	0.005	0.005	0.005	0.005	0.005	0.006	0.006	0.006	0.008	0.008
ATC		Disk	Disk	Disk	Disk	Disk	Disk	Disk	Disk	Disk	Disk
ATC Capacity	hold	24	24	24	24	24	24	24	24	24	24
