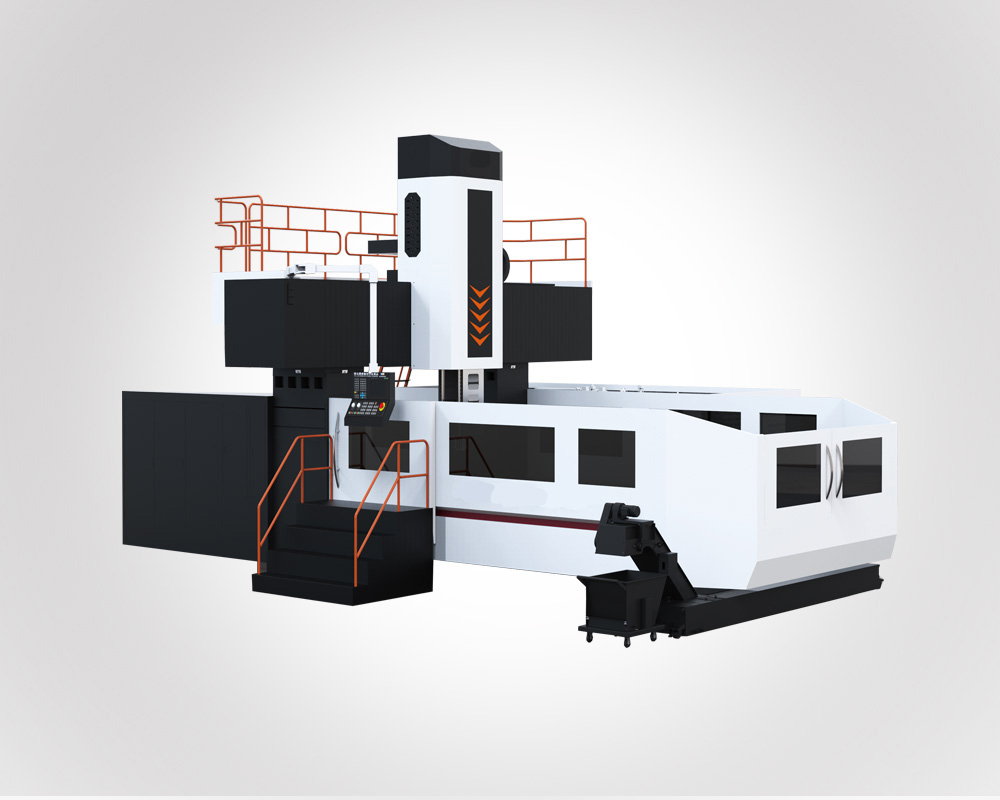

GMC32 Gantry Machining Center

Parameters	Unit	GMC5532L	GMC6532L	GMC8532L	GMC10532L
Door width	mm	3200	3200	3200	3200
X-axis	mm	5500	6500	8500	10500
Y-axis Travel	mm	4000	4000	4000	4000
Z-axis	mm	1250	1250	1250	1250
From spindle nose to worktable face	mm	400-1650	400-1650	400-1650	400-1650
Table width	mm	2800	2800	2800	2800
T-slot	mm	28	28	28	28
bearing	t	28	32	36	40
Spindle type	r/min	6000	6000	6000	6000
Spindle form		Direct connection	Direct connection	Direct connection	Direct connection
Main motor power	Kw	22/26	22/26	22/26	22/26
Spindle Torque	N.m	770/910	770/910	770/910	770/910
Spindle box section	mm	450	450	450	450
Spindle taper hole specification		BT50	BT50	BT50	BT50
X-axis Rapid Traverse	m/min	12	12	12	12
Y-axis Rapid Traverse	m/min	12	12	12	12
Z-axis Rapid Traverse	m/min	12	12	12	12
Cutting Speed	m/min	10	10	8	8
Positioning Accuracy X（half-closed loop）	mm	0.026	0.031	0.035	0.044
Positioning Accuracy Y（half-closed loop）	mm	0.021	0.021	0.021	0.021
Positioning Accuracy Z（half-closed loop）	mm	0.014	0.014	0.014	0.014
Repeatability Accuracy X（half-closed loop）	mm	0.018	0.021	0.023	0.029
Repeatability Accuracy Y（half-closed loop）	mm	0.014	0.014	0.014	0.014
Repeatability Accuracy Z（half-closed loop）	mm	0.008	0.008	0.008	0.008
Power capacity	Kva	60	60	60	60
Air source pressure	Mpa	0.65	0.65	0.65	0.65
Machine size (height)	mm	6600	6600	6600	6600
Floor area (about)	mm×mm	14100×7400	16100×7400	21500×7400	25500×7400
Machine weight	T	83	95	115.5	130
controller		FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS	FANUC/SIEMENS
