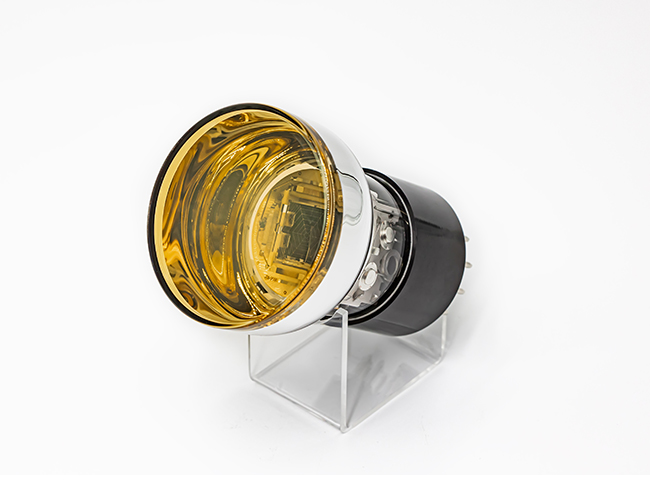

HAMAMATSU CR165 PMT
 |
114mm diameter, end window type, photocathode material is double alkali (effective photosensitive surface diameter: 100mm; spectral response range: 300-650nm) |
| Parameter | Value |
| Product Mode: | CR165 |
| Spectral Response Range (nm): | 300-650 |
| Peak wavelength (nm): | 420 |
| The minimum effective diameter of the cathode (mm): | 100 |
| Photocathode material: | double alkali |
| Shell material: | borosilicate glass |
| Multiplication System Structure/Level: | box grid/8 |
| Cathode illumination sensitivity, min. (μA/lm): | 30 |
| Cathode illumination sensitivity, typical (μA/lm): | 60 |
| Cathode blue light sensitivity index, min.: | 6 |
| Cathode blue light sensitivity index, typical: | 8 |
| R/w×10³ min.: | -- |
| R/w×10³ typical: | -- |
| Anode Light Sensitivity Min. (A/lm)(1000V): | 20 |
| Anode Light Sensitivity Typical (A/lm)(1000V): | 40 |
| Dark current 1) typical (nA)(1000V): | 10 |
| Dark current 1) max. (nA)(1000V) | 100 |
| Typical gain | 6.67x105 |
| Anode to cathode voltage max (V DC): | 1500 |
| Rise Time, typical (ns): | 8 |
| Working temperature (℃): | -30～+50 |
| Note: | |
| • The dark current is the test value after 30 minutes in the dark • Impact：100g（11ms） • Sinusoidal vibration：10g • Products with "-C" suffixed in the model name are magnetically shielded |
|
