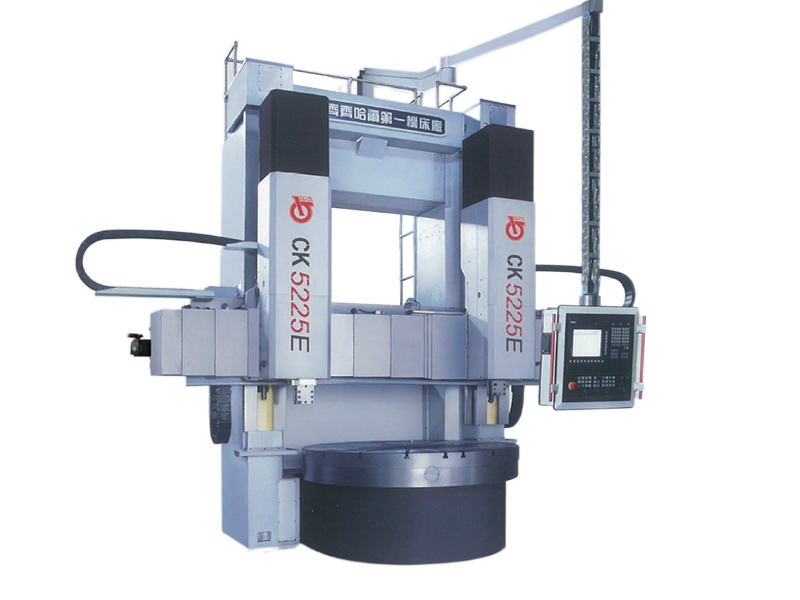

CK5225E-CK5240E
-
General layout of this machine is gantry frame thermal symmetry structure and left column & right one and connecting beam form gantry structure calculated by finite element to make key parts and the whole machine have the features of high strength, high rigidity and high vibration absorption.
-
Cross rail moves on the left and right column guideway driven by AC motor with two extended axle to make cross rail move up and down via the transmission of left and right cross rail elevating boxes and nut screw. Two railheads are mounted on the cross rail and left CNC tool head is driven by Siemens AC servo motor and right universal tool head is driven by domestic AC servo motor. Main transmission is DC II shift and table has spindle encoder. CNC system is Siemens 828 D.
-
It is suitable for machining ferrous metal, non-ferrous metal and part non-metal material with high-speed steel and hard alloy tool.
-
It can realize the following operations: finely and roughly internal and external cylindrical turning and tapering, flat surfacing, threading as well as slotting.
-
The machine adopts module design and finite element analysis with simple structure and strong reliability.
-
All the key parts of machine is analyzed and calculated by finite element with reasonable structure and realize high rigidity, high stability and strong cutting force.
-
Table adopts constant current hydrostatic with simple structure and large loading capacity.
| Parameters | Unit | CK5225Ex16/16 (Rolling guideway) CK5225Fx20/20 (Hydrostatic guideway) CK5225Ex15.20.25/20 |
CK5231Ex15.20.25/20 Hydrostatic guideway) |
CK5235Ex20.25/20 Hydrostatic guideway) |
CK5240Ex20.25/20 Hydrostatic guideway) |
| Max.machining diameter | mm | 2500 | 3150 | 3500 | 4000 |
| Diameter of table | mm | 2250 | 2830 | 2830 | 3150 |
| Max.weight of workpiece(t) | Ton | rolling 16 / hydrostatic 20 | 20 | 20 | 20 |
| Range of table speed | r/m | 3.15-100(rolling) / 2-63(hydrostatic) | 2-63 | 2-63 | 2-63 |
| Max.machining height | mm | 1600-rolling / (1500)[2000](2500 hydrostatic] | (1500)[2000](2500) | [2000](2500) | [2000](2500) |
| Max.torque of table | kNm | 43/63 | 63 | 63 | 63 |
| Step of table speed | Stepless (machinery II shifts) horizontal axis | Stepless (machinery II shifts) horizontal axis | Stepless (machinery II shifts) horizontal axis | Stepless (machinery II shifts) horizontal axis | |
| Max.cutting force of tool head | KN | Right tool head 35KN, left tool head 30KN | Right tool head 35KN, left tool head 30KN | Right tool head 35KN, left tool head 30KN | Right tool head 35KN, left tool head 30KN |
| Max vertical travel of crossrail | mm | 1250/[1650]2150 | 1250[1650](2150) | [1650](2150) | [1650](2150) |
| Ram section of railhead | mmxmm | 255x200(T type) | 255x200(T type) | 255x200(T type) | 255x200(T type) |
| Vertical stroke of tool post ram | mm | 1000/1250 | 1000/1250 | 1000/1250 | 1000/1250 |
| Section of tool bar | mmxmm | 40x50 | 40x50 | 40x50 | 40x50 |
| Swivel limit of railhead(left right) | ±30° | ±30° | ±30° | ±30° | |
| Left CNC feed and rapid speed motor | SIEMENS 1FK7103-5AC71 | SIEMENS 1FK7103-5AC71 | SIEMENS 1FK7103-5AC71 | SIEMENS 1FK7103-5AC71 | |
| Right universal feed and rapid speed motor | UNIWAT USF-3.7 | UNIWAT USF-3.7 | UNIWAT USF-3.7 | UNIWATUSF-3.7 | |
| Rapid speed of left and right railhead | mm/min | 4000 | 4000 | 4000 | 4000 |
| Left and right tool post horizontal, vertical guideway pair | Sliding guideway | Sliding guideway | Sliding guideway | Sliding guideway | |
| Table guideway pair | Rolling guideway [Hydrostatic guideway] | Hydrostatic guideway | Hydrostatic guideway | Hydrostatic guideway | |
| Power of main motor | kW | DC55 | DC55 | DC55 | DC55 |
| CNC system | SIEMENS 828D | SIEMENS 828D | SIEMENS 828D | SIEMENS 828D |
