YK - High Accuracy CNC Gear Hobbing Center

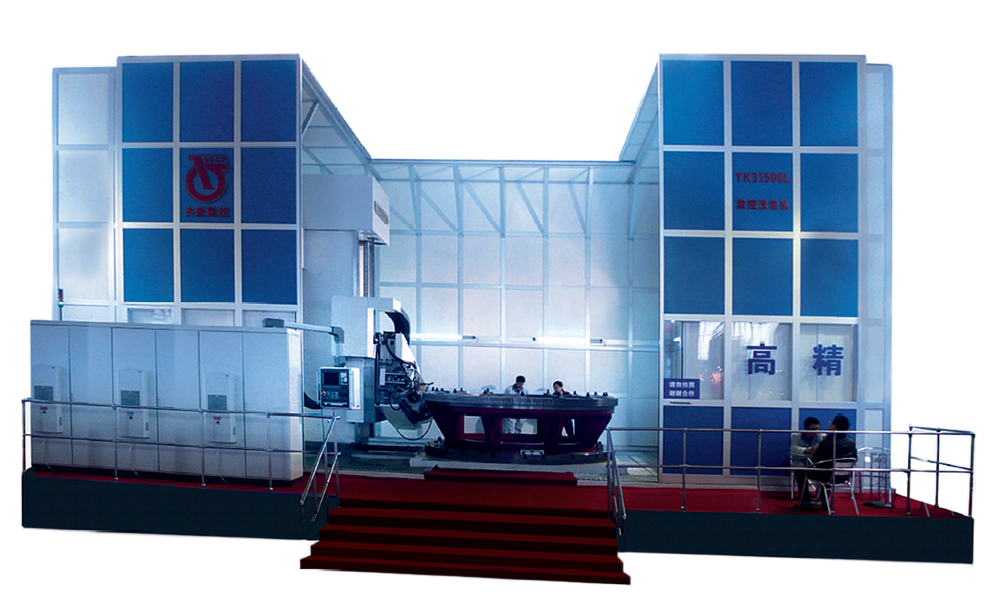

This gear hobber series are finish machining device for gear, which machining diameter are 2.5m-16m.It is suitable for machining the large-sized work piece in military, wind generate electricity, bearing, electric station, ship, mining area and metallurgy etc. industries. It can be carried out the machine of the straight gear, skew gear, bevel pinion, drum gear, warm wheel and multiage spline etc., through electric gear box.
This series have six CNC shafts and adopt SIEMENS 840DSL CNC system, which are totally digital controlled. It can implement the four-spindle interlocking and perform kinds of automatic circulation by programming.
This machine adopts large workpiece design with high intensity and high rigidity, and apply large-dimension hard steel guide way and preload guide way pair, which still can guarantee the finish machining character under high speed and heavy load.
The table adopts large-scale ring type hydrostatic guideway, hydrostatic bearing to supporting, and high accuracy double worm wheel? worm bar pairs' transmission, this table have very high dynamic and static rigidity, and exact non-clearance driving.
The spindle system adopts high-power A.C spindle motor to drive and step less speed regulating. It adopts damper and space-eliminating mechanism to implement main transmission system with high accuracy and high rigidity.
The head of this series machine is adopted interchanging structure, we can offer hobbling bead, inner milling head, finger-type head and shaft gearing machining etc. according demands
The finish machining of gear hobbling machine can reach the 6-degree of national standard.

Parameters	Unit	YK31250L	YK31315L	YK31350L	YK31400L	YK31500L	YK31630L	YK31800L	YK311000L	YK311250L	YK311600L
Max.mahining diameter	mm	2500	3150	3500	4000	5000	6300	8000	10000	12500	16000
Machining teeth		Any	Any	Any	Any	Any	Any	Any	Any	Any	Any
Max. rolling cutting module	mm	32	32	32	32	32	32	32	45	45	45
Max. outer teeth rolling milling module	mm	40	40	40	40	40	40	40	50	50	50
Max. outer race helical angle	deg	±45	±45	±45	±45	±45	±45	±30	±30	±30(≤10m) ±15(>10m)	±30(≤10m) ±15(>10m)
Max. inner race helical angle	deg	±25	±25	±25	±25	±25	±25	±25	±25	±25	±25
Max. machining outer race tooth width	mm	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
Max. machining inner race tooth width	mm	400	400	400	400	400	400	400	400	400	400
Max. diameter of hob	mm	Ø450	Ø450	Ø450	Ø450	Ø450	Ø450	Ø450	Ø500	Ø500	Ø500
Rotating speed range of hob	r/min	10-200	10-200	10-200	10-200	10-200	10-200	10-200	10-100	10-100	10-100
Motor power of hob head	kW	52	52	52	52	52	52	52	89	89	89
Max. tangent stroke of hob head	mm	450	450	450	450	450	450	450	600	600	600
Max. diameter of inner milling	mm	500	500	500	500	500	500	500	500	500	500
Max. width of inner milling cutter	mm	90	90	90	90	90	90	90	90	90	90
Speed range of inner milling cutter	r/min	10-200	10-200	10-200	10-200	10-200	10-200	10-200	10-200	10-200	10-200
Motor power of inner milling head	kW	46	46	46	46	46	46	46	46	46	46
Table diameter	mm	2000	2000	2500	2500	3500	3500	4500	5200	5200	5200
Max. rotating speed range of table	r/min	5	5	4	4	3	3	1	0.7	0.7	0.5
Max. weight of workpiece	t	30	30	50	50	80	80	120	250	250	250
Feed speed of X axis	mm/min	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000	0-3000
Feed speed of Y axis	mm/min	0-500	0-500	0-500	0-500	0-500	0-500	0-500	0-500	0-500	0-500
Feed speed of Zaxis	mm/min	0-2000	0-2000	0-2000	0-2000	0-2000	0-2000	0-2000	0-2000	0-2000	0-2000
Coordinate resolution of CNC linear	mm	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001
Coordinate resolution of CNC axis swivel	deg	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001	0.001
