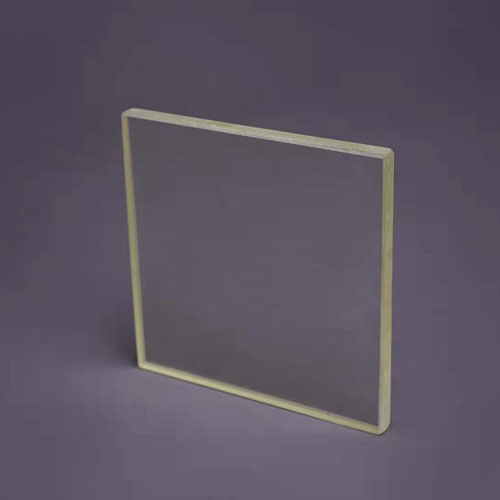

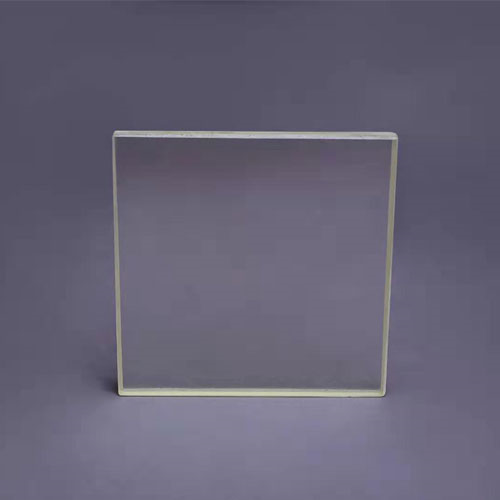

ZF3 Radiation Protection Lead Glass
Suitable for use in medical radiographic environments, it can effectively protect against the harmful effects of low energy radiation on the human body.
| Parameters | ZF2 | ZF3 | ZF6 | ZF7 | |
| Crystalline structure | Quartz | 37.03% | 36.15% | 31.03% | 28.19% |
| Lead oxide | 59% | 61% | 65% | 70% | |
| Potassium oxide | 3.60% | 2.50% | 2.70% | 2.80% | |
| Dysprosium oxide | 0.18% | 0.15% | 0.26% | 0.22% | |
| Arsenic oxide | 0.19% | 0.20% | 0.45% | 0.49% | |
| Density | 4.2g/cm3 | 4.4g/cm3 | 4.7g/cm3 | 5.2g/cm3 | |
| Refractive index | 1.6735 | 1.7174 | 1.7552 | 1.8002 | |
| Transmittance | 86% | 86% | 86% | 89% | |
| Length | Customized available | Customized available | Customized available | Customized available | |
| Width | Customized available | Customized available | Customized available | Customized available | |
| Thickness | Customized available | Customized available | Customized available | Customized available | |
