NaI(Tl) Gamma Scintillation Detector
Model END030301 NaI(Tl) Gamma Scintillation Detector

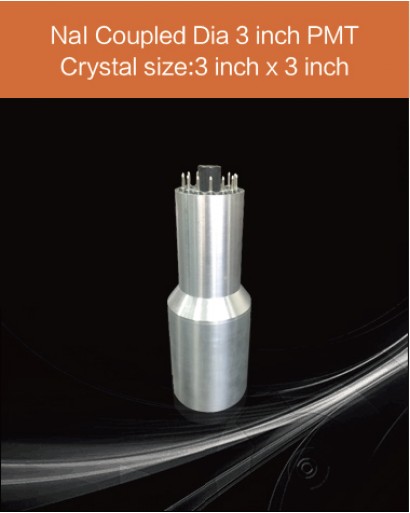

The model END030301 NaI(Tl) scintillation detector is a hermetically sealed assembly which includes a high resolution diameter 3 inch x 3 inch length NaI(Tl) crystal, a diameter 3 inch photomultiplier tube, an internal magnetic light shield, an aluminum housing and a 14 pin connector.
END030301 NaI(Tl) Sintillation Detector Specifications
- Scintillation crystal: NaI(Tl) diameter 3 inch x 3 inch
- PMT: Beijing Hamamatsu diameter 3 inch CR119
- Energy resolution: < 7.5% at Cs137
- Working temperature: -30 ~ +50 C
- High Voltage: 400V ~ 1000V

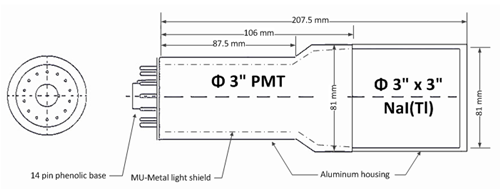

%20detector/3x3%20NaI(Tl)%20detector%20drawing.png)
