NaI(Tl) Gamma Scintillation Detector

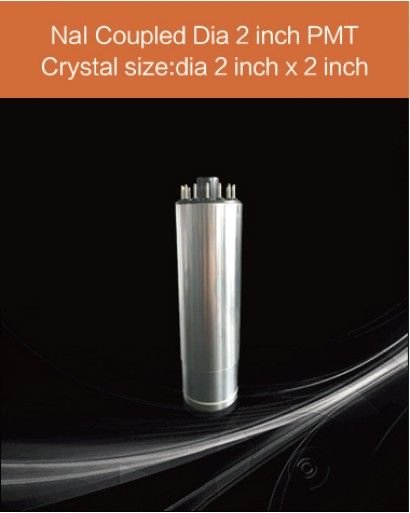

Model END020201 NaI(Tl) Gamma Scintillation Detector

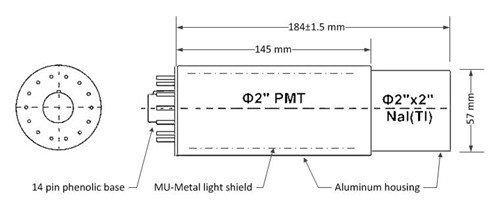

The model END020201 NaI(Tl) scintillation detector is a hermetically sealed assembly which includes a high resolution diameter 2 inch x 2 inch length NaI(Tl) crystal, a diameter 2 inch photomultiplier tube, an internal magnetic light shield, an aluminum housing and a 14 pin connector.
END020201 NaI(Tl) Scintillation Detector Specifications
- Scintillation crystal: NaI(Tl) diameter 2 inch x 2 inch
- PMT: Beijing Hamamatsu diameter 2 inch CR105
- Energy resolution: < 7.5% at Cs137
- Working temperature: -30 ~ +50 C
- High Voltage: 400V ~ 1000V
