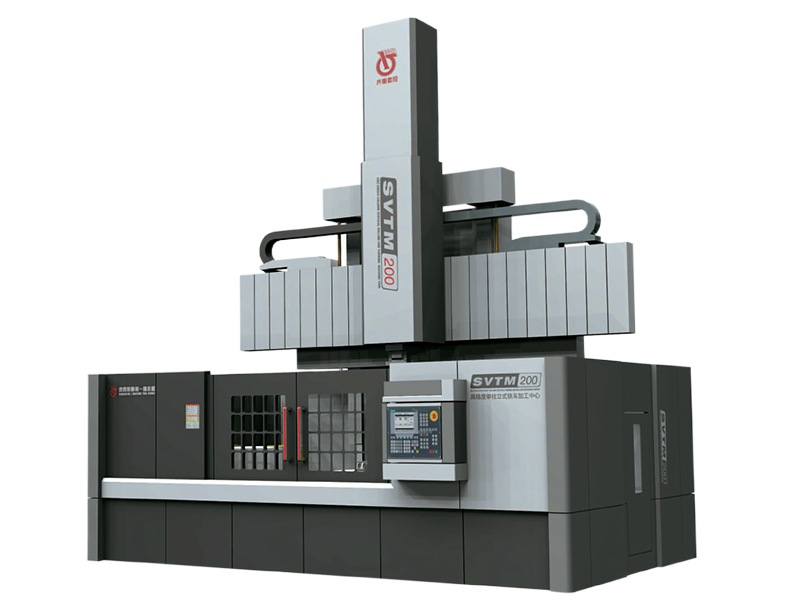

SVTM200
- The machine is suitable for military, aerospace, energy sources, automobile etc. industry swivel parts high accuracy, high efficiency turning, milling, drilling machining.
- Dynamic static rigid is very high, especially for heavy load, high speed cutting.
- The table is adopted rolling guideway structure, radial is high accuracy double row cylinder roller bearing center, axial is adopted high accuracy thrust roller bearing as rolling guideway, which improve service life and accuracy for table.
- The machine is adopted movable C axis, it can realize high accuracy swivel feed for table.
- Transmission gear of table and bearing lubrication can be supplied each spot by cooling units.it can reduce temperature raising, and reduce thermal deformation.
- New type milling head is equipped with the machine, milling spindle is fixed inside of ram for high speed milling, angle oi cylinder clamping body is mounted under the ram for satisfy with heavy load turning.
- Guard of complete machine is equipped with the machine, the machine has function for coolant and cutting chips automatic recovery, the machine is reached green manufacturing.
| Parameters | Unit | Value |
| Max.diameter for machining | mm | 2000 |
| Max.workpiece's highness | mm | 1600 |
| Max.loading weight of table | t | 12 |
| Rotating speed range of table (Turning) | r/min | 2.5~315 |
| Rotating speed range of table (milling) | r/min | 0.002-4 |
| Max.torque of table | kN·m | 25 |
| Max.cutting force of head | KN | 32 |
| Dismension of head ram section | m㎡2 | 280x280 |
| (X、Z) Rapid sped moving of head |
mm/min | 8000 |
| Range of milling rotating speed | min | 10~2000 |
| (1PH7) Power of milling motor |
KW | S1=17 S2=22.5 |
| (1PH7) Power of main motor |
kW | S1=55 S2=78 |
| Face,radial run out of table | mm | 0 |
| Accuracy of X,Y axis position | mm | 0.015/1000 |
| Accuracy of C axis position | " | 5 |
| CNC system | 840DSL |
