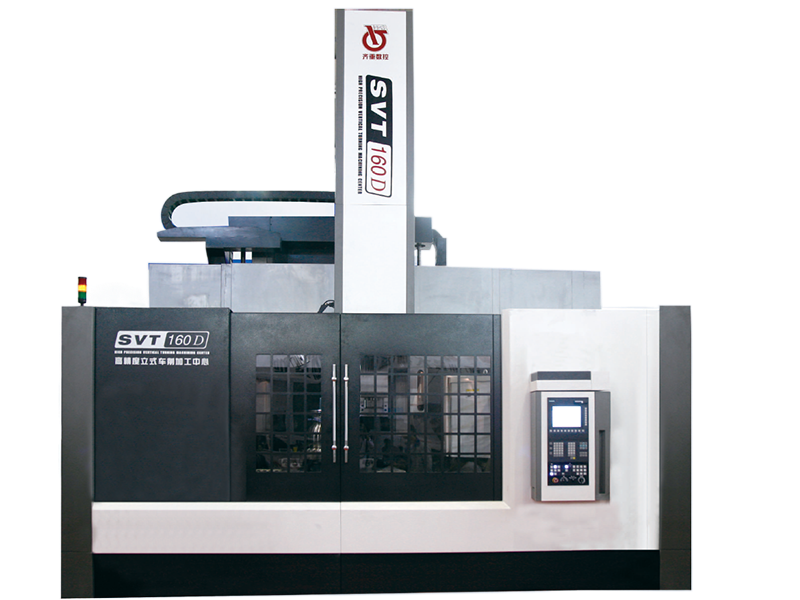

SVT160D
- They are integrated mechanical and electrical in one part of machines designed and manufactured by our company according to client requirement at home and abroad adopting CAD design.
- The machine is equipped with up-date functional parts from home and abroad to realize forceful cutting and it is with the feature like high dynamic and static rigidity, good reliability, long service life and high effectiveness and so on.
- This machine is mainly used for turning machining of large tray parts with high efficiency and high accuracy in aerospace, power generation, automobile, bearing, mold manufacturing industries etc.
| Parameters | SVT160Dx10/8P-MC |
| Max.turning dia. | 1600 mm |
| Max.workpiece height | 1000mm |
| Max.load capacity of table | 8t |
| Table dia. | 1400mm |
| Speed range of table(two gears stepless) | 2.5-315 r/min |
| Max.cutting torque | 20kNm |
| Max.cutting force of toolhead | 32kN |
| Size of section of toolhead ram | 250x250mm |
| Travel of toolhead - Horizontal(X) | -50~1000mm |
| Travel of toolhead - Vertical(Z) | 1000mm |
| Section of tool bar of toolhead | 32x32mm2 |
| Rapid speed of toolhead(X,Z) | 10000mm/min |
| Crossrail travel | 600mm |
| Elevating speed pf crossrail | 410mm/min |
| Power of main motor (DC) | 55kW |
