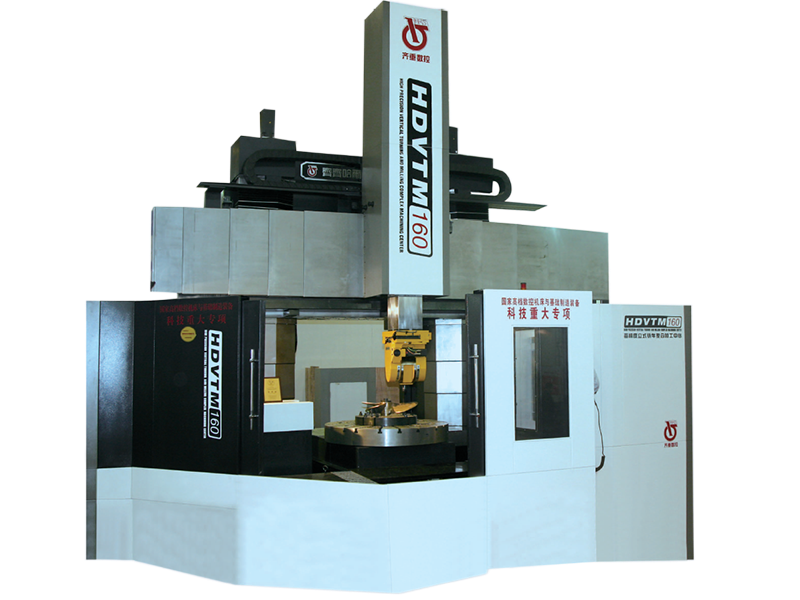

HDVTM - High Accuracy Column Milling Turning Center
Machine is vertical milling and turning compound machining center with moveable table which has the function that five axes can move simultaneously which has not only turning function of large vertical lathe, but also milling function of large gantry milling machine. After clamping the workpiece, turning, milling, drilling, boring, tapping etc. can be realized continuously with high accuracy, high efficiency.
Machine is mainly used for high accuracy machining for complicated plane parts and curved parts in the industries of aerospace, watercraft, automobile, power generation etc.
| Parameters | HDVTM160x10/8L-MC |
| Max.turning dia. | Φ2000 mm |
| Max.workpiece height | 1000mm |
| Max.workpiece weight | 12t |
| Worktable dia. | Φ1600mm |
| Speed range of table(turning) | 2.5-315 r/min |
| Speed range of table(millinng) | 5r/min |
| Max.torque of table | 20 kN.m |
| Power of main motor | 28(two sets)Kw |
| Rapid moving speed of table | 4000mm/min |
| Table travel | -1100~1100mm |
| Rapid moving speed of powered toolhead | 8000mm/min |
| Horizontal travel of powered toolhead | -1500~2200mm |
| Ram travel of powered toolhead | 1000mm |
| Size of section of powered toolhead ram | 340x340mm |
| Max. cutting force of powered toolhead | 32kN |
| Rapid moving speed of crossrail | 2000mm/min |
| Vertical travel of crossrail | 1000mm |
| Max.speed of angular milling head | 12000 r/min |
| Power of angular milling head | 25 Kw |
| No.of axes which can move simultaneously | 5 |
| CNC syslem | 840DSL |
