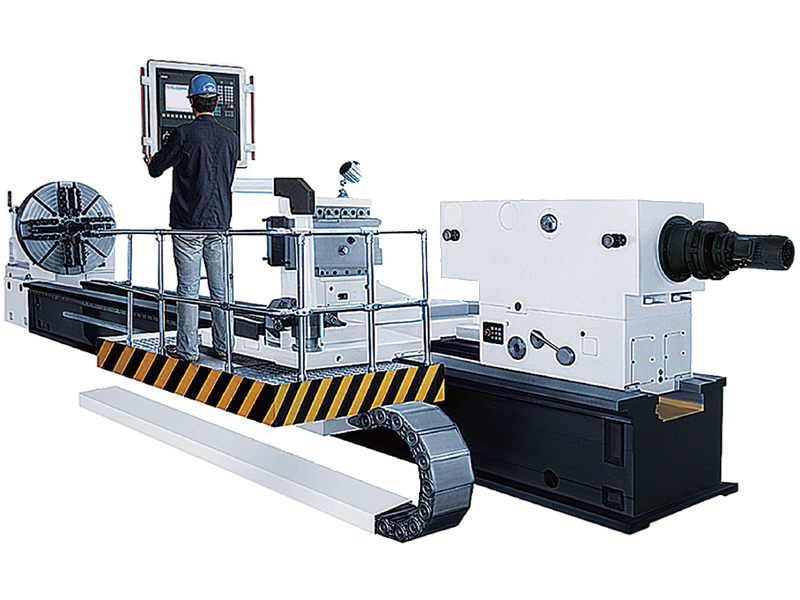

HT I Series
Double deck wall and reduce noisy shockproof' s spindle case body, which is adopted high precision rolling spindle bearing through shaft mode high swivel accuracy short spindle.
Heat symmetry structure for headstock base prevent heat floating movement.
Carriage' s special structure design, friction factor of guideway is small, response velocity is rapid, accuracy stability is well. Cutting rigid is high.
Guideway of bed is rib steel guideway plate' structure with high anti-wear and precision maintenance.
Upper, down separated structure of tailstock, mandrel of high accuracy rolling bearing supporting with heat deformation compensation structure. Rejection force' s display function with high rotating accuracy, high rigid, and high reliability.
| Parameters | Units | HT1125 | HTI160 |
| Max.swivel diamcter on the bed | mm | 1250 | 1600 |
| Max.turning diameter over carriage | mm | 900 | 1250 |
| Max.length of workpiece | mm | 2000-18000 | 2000-18000 |
| Max.weight between center | t | 20 | 20 |
| Pange of spindle speeds | r/min | General Type 0.8-160 CNC Type 1-200 |
General Type 0.8-160 CNC Type 1-200 |
| Dia of faceplate | mm | 1000 | 1000 |
| Max torque of faceplate | KN.m | General Type 32 CNC Type 27 |
General Type 32 CNC Type 27 |
| Max cutting force of carriage | KN | General Type 45 CNC Type 40 |
General Type 45 CNC Type 40 |
| Power of main motor | kW | 55 | 55 |
