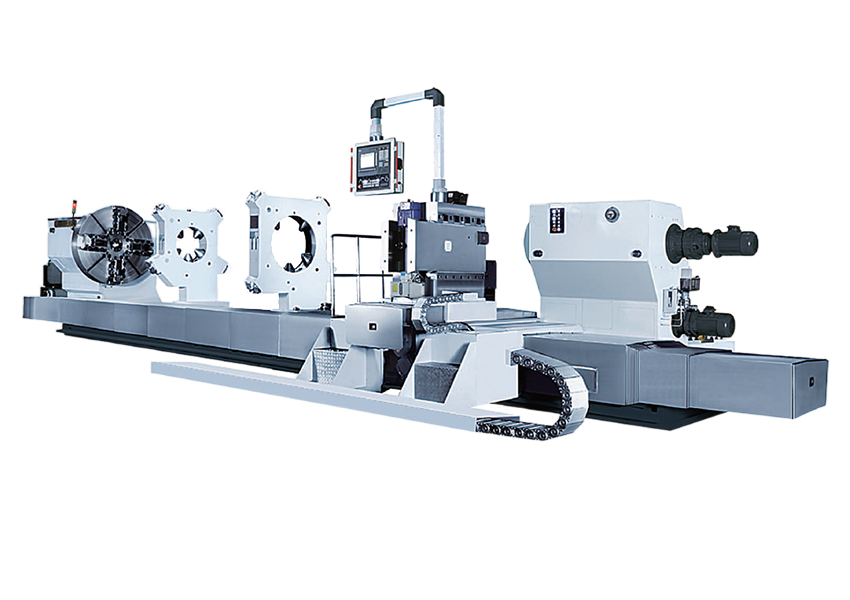

HT IIP Series
- Double deck wall and reduce noisy shockproof' s spindle case body, which is adopted high precision rolling spindle bearing with high swivel accuracy short spindle.
- Base of headstock is case mode structure, inside ring shape enforce rib prevent heat floating movement's heat symmetry structure.
- Whole set mode case body's tailstock, mandrel of high accuracy rolling bearing supporting, short taper handle flange mode center with heat deformation compensation structure, rejection force' s display function. Rotating accuracy is advance with high rigid and high reliability.
- Bed is adopted high strength low stress advance cast iron pouring, rectangle guideway with well heat stability, large supporting, cutting stability.
- Carriage's special structure design, friction factor of guideway is small, response velocity is rapid, accuracy stability is well. Cutting rigid is well.
- Feature and price of the set machine's compare is very advance.
| Parameters | Units | HTII P160 | HT II P200xL/W | HT II P250 | ||
| Max.swivel diameter on the bed | mm | 1600 | 2000 | Ø2500 | ||
| Max.turning diameter over carriage | mm | Ø1250 | 1600 | 2000 | ||
| Max.length of workpiece | mm | 5000-18000 | 5000-18000 | 5000-18000 | ||
| Max.weight between center | t | 32/40 | 40/50 | 63/80 | 40/50 | 63/80 |
| Pange of spindle speeds | r/min | General Type 0.8-160 CNC Type 1-200 |
General Type 0.8-160 CNC Type 1-201 |
General Type 0.63-125 CNC Type 0.8-160/0.63-125 |
General Type 0.63-125 CNC Type 0.8-160 |
General Type 0.63-125 CNC Type 0.8-160/0.63-125 |
| Dia of faceplate | mm | 1600 | 2000 | 2500 | ||
| Max torque of faceplate | KN.m | General Type 56/56 CNC Type 40/50 |
General Type 56/56 CNC Type 64/64 |
General Type 100/100 CNC Type 90/100 |
General Type 70/100 CNC Type 64/80 |
General Type 100/125 CNC Type 80/100 |
| Max cutting force of carriage | KN | General Type 90/90 CNC Type 63/80 |
General Type 70/70 CNC Type 80/80 |
General Type 125/125 CNC Type 110/125 |
General Type 70/100 CNC Type 63/80 |
General Type 100/125 CNC Type 80/100 |
| Power of main motor | kW | General Type 55/75 CNC Type 75/90 |
General Type 75/75 CNC Type 90/90 |
General Type 110/110 CNC Type 110/110 |
General Type 75/110 CNC Type 90/110 |
General Type 110/132 CNC Type 110/110 |
