NaI(Tl) Gamma Ray Scintillation Detector
NaI(Tl) Scintillation Detector

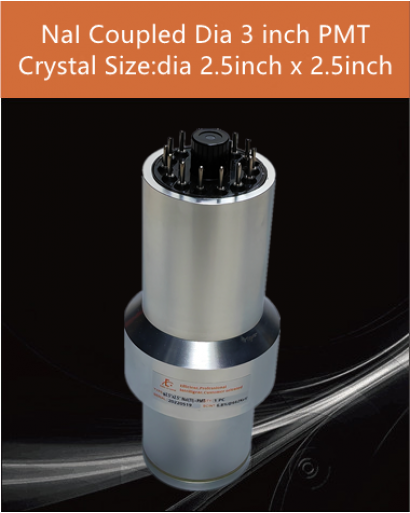

The NaI(Tl) scintillation detector is a hermetically sealed assembly which includes a high resolution diameter 2.5 inch x 2.5 inch NaI(Tl) crystal, a diameter 3 inch photomultiplier tube, an internal magnetic light shield, an aluminum housing and a 14 pin connector.
NaI(Tl) Scintillation Detector Specifications
- Scintillation crystal: NaI(Tl) diameter 2.5 inch x 2.5 inch
- PMT: Beijing Hamamatsu diameter 3 inch CR119
- Energy resolution: < 7.5% at Cs137
- Working temperature: -30 ~ +50 C
- High Voltage: 300V ~ 1000V
